Integrated 1.0 Integrated Amplifier
Product Reviews:
Plenty of power
The Constellation Audio Inspiration INTEGRATED 1.0 is the newest member of Constellation Audio's most affordable Inspiration Series, and joins its preamplifier and amplifier line-mates in delivering the performance that is expected from Constellation Audio at a more affordable price. Delivering plenty of power, 100 wpc into 8 Ohms (and twice that into 4), a full array of balanced and single-ended inputs and outputs, a home theater bypass, and an included headphone amp, the Inspiration INTEGRATED 1.0 provides the easiest entrance into the world of Constellation Audio.
Custom-designed binding posts
Like all Constellation Audio products, the Inspiration INTEGRATED 1.0 takes full advantage of shared family technologies. Its design is based on the award-winning Inspiration PREAMP 1.0 and STEREO 1.0, combining the preamplifier and half of the stereo amplifier on a single chassis. The custom-designed binding posts are the same binding posts used on our Performance Series Centaur and Reference Series Hercules.
Specifications:
-

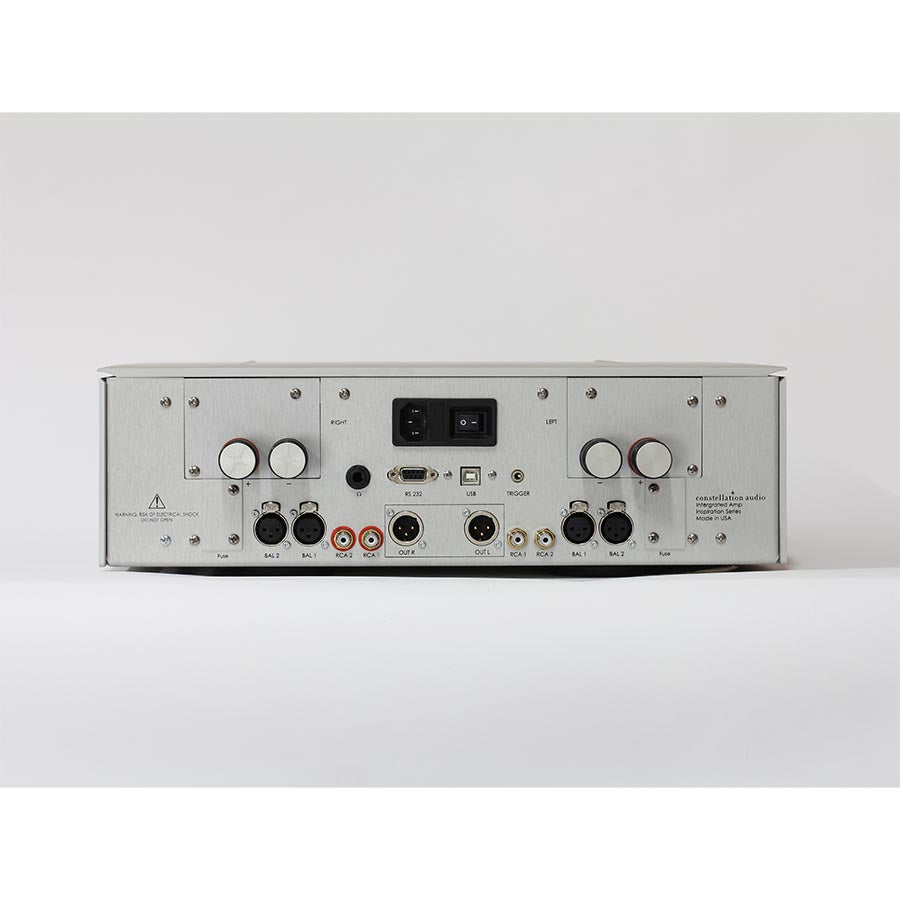

Inputs:3 XLR stereo, 3 RCA stereo, USB (for control)
-
Outputs:2 XLR stereo, 2 RCA stereo, 12-volt trigger
-
THD+N:<0.001%, 20 Hz - 20 kHz @ 2V out / <0.1%, 20 Hz - 20 kHz @ 10V out
-
Frequency response:10 Hz to 100 kHz, +/- 0.5 dB
-
Signal-to-noise ratio:>-105 dB, A-weighted
-
Input impedance (balanced):20 KΩ
-
Input impedance (unbalanced):10 KΩ
-
Output impedance:< 50Ω
-
Volume control resolution:0.5dB from 0dB to -90 dBFS
-
Weight:11.3 kg
-
Dimensions (W x H x D):43.2cm x 14cm x 48.3cm
